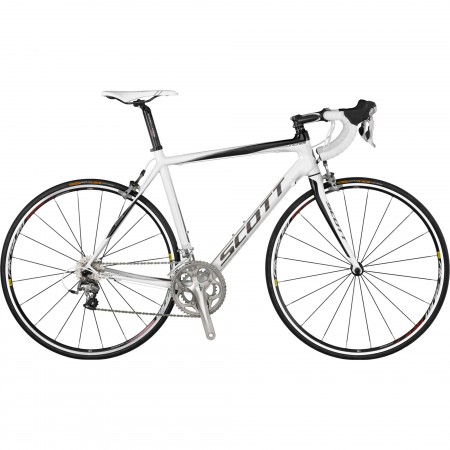

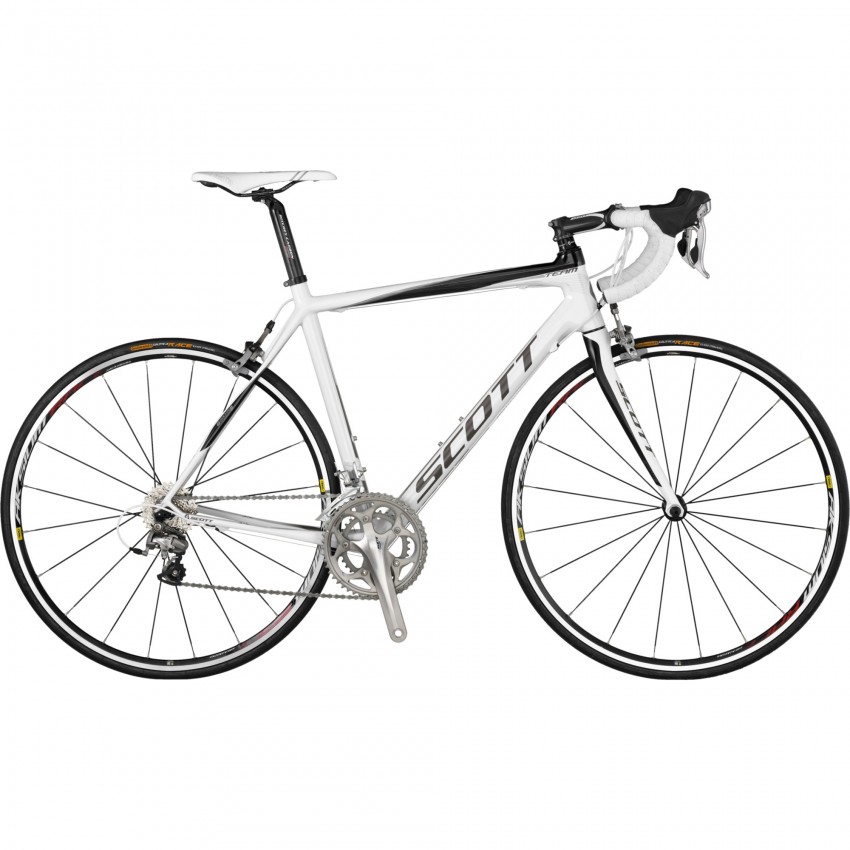

CR1 Team

Kod produktu:
221888: 20-Speed
221890: 20-Speed Compact
221891: 30-Speed



Opis produktu

CR1 oferuje idealną równowagę wydajności i komfortu. Zaprojektowano go, by absorbował wstrząsy i wibracje powstające na nierównościach drogi. Rezultatem tego podejścia jest gładka i stabilna jazda, zmniejszająca zmęczenie rowerzysty i czyniąca jazdę bardziej satysfakcjonującą. Sztywność boczna roweru pozwala na bezpośredni transfer mocy i ułatwia pewne pokonywanie zakrętów i zjeżdżanie. Geometria CR1 jest zorientowana na wydajną jazdę, jednak rura górna i główka sterowa mają tak dobrane długości, by zapewnić bardziej komfortową pozycję niż w rowerach czysto wyścigowych.

Tylny trójkąt i widelec cechuje obecność systemu tłumienia drgań SDS. Te elementy zostały specjalnie skonstruowane – kształt rurek, ich wymiary i układ włókien – by zapewnić podatność pionową bez poświęcania odporności na skręcanie.

Wymiary
XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61

Waga
7.91 kg

Rama
Scott CR1 HMF NET, IMP Carbon technology,
Road Comfort geometry
20-Speed and compact: Integrated BB
30-Speed: Standard BB

Widelec
Scott CR1 HMF NET, 1 1/8, Carbon steerer, Integrated Carbon Dropout

Stery
Ritchey Int. Cartridge

Przerzutka (tył)
Shimano 105 silver new 2012, RD-5700A 20/30 Speed

Przerzutka (przód)
Shimano 105 silver
20-Speed and compact: FD-5700, 20 Speed
30-Speed: FD-5703, 30 Speed

Manetki
Shimano 105, Dual control
20-Speed and compact: ST-5700, 20 Speed
30-Speed: ST-5703, 30 Speed

Hamulce
Shimano 105 BR-5700, Super SLR Dual pivot silver

Korbowód
Shimano 105, Hollowtech II, silver
20-Speed: FC-5700, 53 x 39 T
Compact: FC-5750, 50 x 34 T
30-Speed: FC-5703, 50 x 39 x 30 T

Oś korbowodu
20-Speed and compact:
INT Dura-Ace SM-BB9141
30-Speed: Shimano Ultegra SM-FC 6700

Kierownica
Scott Road Pilot Pro OS, Anatomic 31.8 mm

Mostek
Scott Road Pilot Pro OS, 1 1/8, four Bolt 31.8 mm

Pedały
nil

Sztyca
Ritchey Carbon Pro 31.6/300mm

Siodło
Scott Road Pro SL

Piasta (Przód)
Mavic Aksium black

Piasta (Tył)
Mavic Aksium black

Łańcuch
Shimano 105 CN-5701

Kaseta
20-Speed: Shimano 105, CS-5700, 11-25 T
Compact and 30-Speed: Shimano Tiagra,
CS-4600, 12-30 T

Szprychy
Mavic Aksium black

Obręcze
Mavic Aksium black, 18 Front / 20 Rear

Opony
Continental Ultra Race fold, 700 x 23

    XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
A head tube angle 70.5° 71.0° 73.0° 73.0° 73.0° 73.0° 73.0°
B headtube length 111 mm 4.4 inches 116 mm 4.6 inches 136 mm 5.4 inches 156 mm 6.1 inches 176 mm 6.9 inches 196 mm 7.7 inches 216 mm 8.5 inches
C toptube length horizontal 505 mm 19.9 inches 515 mm 20.3 inches 530 mm 20.9 inches 545 mm 21.5 inches 560 mm 22.0 inches 575 mm 22.6 inches 595 mm 23.4 inches
E seat tube angle 75.0° 75.0° 74.5° 74.0° 73.5° 73.3° 73.3°
F BB center to top of seattube 470 mm 18.5 inches 490 mm 19.3 inches 520 mm 20.5 inches 540 mm 21.3 inches 560 mm 22.0 inches 580 mm 22.8 inches 610 mm 24.0 inches
G BB center to toptube center 410 mm 16.1 inches 430 mm 16.9 inches 460 mm 18.1 inches 480 mm 18.9 inches 500 mm 19.7 inches 520 mm 20.5 inches 550 mm 21.7 inches
H chainstay length 405 mm 15.9 inches 405 mm 15.9 inches 405 mm 15.9 inches 405 mm 15.9 inches 405 mm 15.9 inches 405 mm 15.9 inches 405 mm 15.9 inches
I BB offset -67 mm -2.6 inches -67 mm -2.6 inches -67 mm -2.6 inches -67 mm -2.6 inches -67 mm -2.6 inches -67 mm -2.6 inches -67 mm -2.6 inches
J standover height 723 mm 28.5 inches 737 mm 29.0 inches 765 mm 30.1 inches 784 mm 30.9 inches 803 mm 31.6 inches 823 mm 32.4 inches 847 mm 33.3 inches
  wheelbase 975 mm 38.4 inches 978 mm 38.5 inches 980 mm 38.6 inches 981 mm 38.6 inches 992 mm 39.1 inches 1001 mm 39.4 inches 1021 mm 40.2 inches
K reach 368 mm 14.5 inches 376 mm 14.8 inches 379 mm 14.9 inches 383 mm 15.1 inches 387 mm 15.2 inches 394 mm 15.5 inches 409 mm 16.1 inches
L stack 513 mm 20.2 inches 519 mm 20.4 inches 545 mm 21.5 inches 565 mm 22.2 inches 584 mm 23.0 inches 603 mm 23.7 inches 620 mm 24.4 inches
  stem length 90 mm 100 mm 110 mm 110 mm 110 mm 120 mm 130 mm
