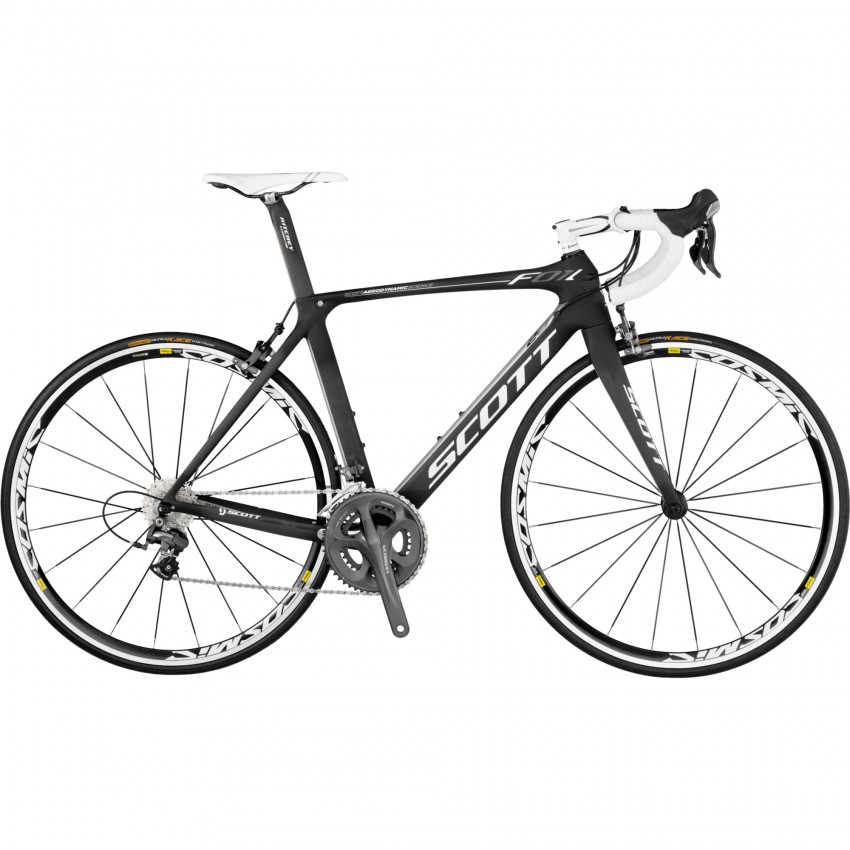

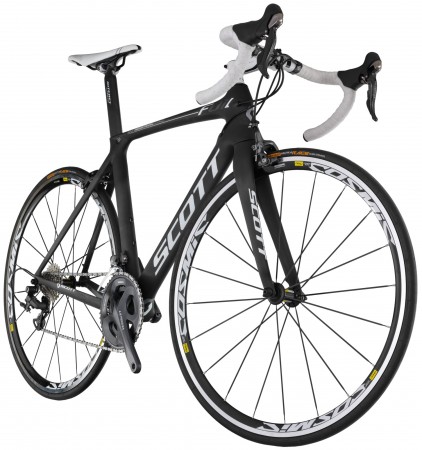

FOIL stanowi perfekcyjne połączenie lekkości, aerodynamiki i sztywności, dające w efekcie najbardziej zaawansowany rower szosowy dostępny na rynku. FOIL, twój następny rower.
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |||||||||
| A | head tube angle | 70.5° | 71.0° | 72.0° | 73.0° | 73.0° | 73.3° | 73.3° | |||||||
| B | headtube length | 100 mm | 3.9 inches | 105 mm | 4.1 inches | 120 mm | 4.7 inches | 140 mm | 5.5 inches | 160 mm | 6.3 inches | 180 mm | 7.1 inches | 200 mm | 7.9 inches |
| C | toptube length horizontal | 510 mm | 20.1 inches | 520 mm | 20.5 inches | 535 mm | 21.1 inches | 550 mm | 21.7 inches | 565 mm | 22.2 inches | 580 mm | 22.8 inches | 595 mm | 23.4 inches |
| E | seat tube angle | 74.5° | 74.5° | 74.0° | 73.3° | 73.3° | 73.0° | 72.5° | |||||||
| G | BB center to toptube center | 410 mm | 16.1 inches | 430 mm | 16.9 inches | 460 mm | 18.1 inches | 480 mm | 18.9 inches | 500 mm | 19.7 inches | 520 mm | 20.5 inches | 550 mm | 21.7 inches |
| H | chainstay length | 405 mm | 15.9 inches | 405 mm | 15.9 inches | 405 mm | 15.9 inches | 405 mm | 15.9 inches | 405 mm | 15.9 inches | 405 mm | 15.9 inches | 405 mm | 15.9 inches |
| I | BB offset | -67 mm | -2.6 inches | -67 mm | -2.6 inches | -67 mm | -2.6 inches | -67 mm | -2.6 inches | -67 mm | -2.6 inches | -67 mm | -2.6 inches | -67 mm | -2.6 inches |
| J | standover height | 717 mm | 28.2 inches | 731 mm | 28.8 inches | 755 mm | 29.7 inches | 775 mm | 30.5 inches | 794 mm | 31.3 inches | 814 mm | 32.0 inches | 838 mm | 33.0 inches |
| wheelbase | 972 mm | 38.3 inches | 978 mm | 38.5 inches | 980 mm | 38.6 inches | 979 mm | 38.5 inches | 994 mm | 39.1 inches | 1003 mm | 39.5 inches | 1012 mm | 39.8 inches | |
| K | reach | 371 mm | 14.6 inches | 379 mm | 14.9 inches | 384 mm | 15.1 inches | 385 mm | 15.2 inches | 394 mm | 15.5 inches | 400 mm | 15.7 inches | 403 mm | 15.9 inches |
| L | stack | 503 mm | 19.8 inches | 509 mm | 20.0 inches | 527 mm | 20.7 inches | 549 mm | 21.6 inches | 569 mm | 22.4 inches | 589 mm | 23.2 inches | 608 mm | 23.9 inches |
| stem length | 90 mm | 100 mm | 110 mm | 110 mm | 110 mm | 120 mm | 130 mm | ||||||||
