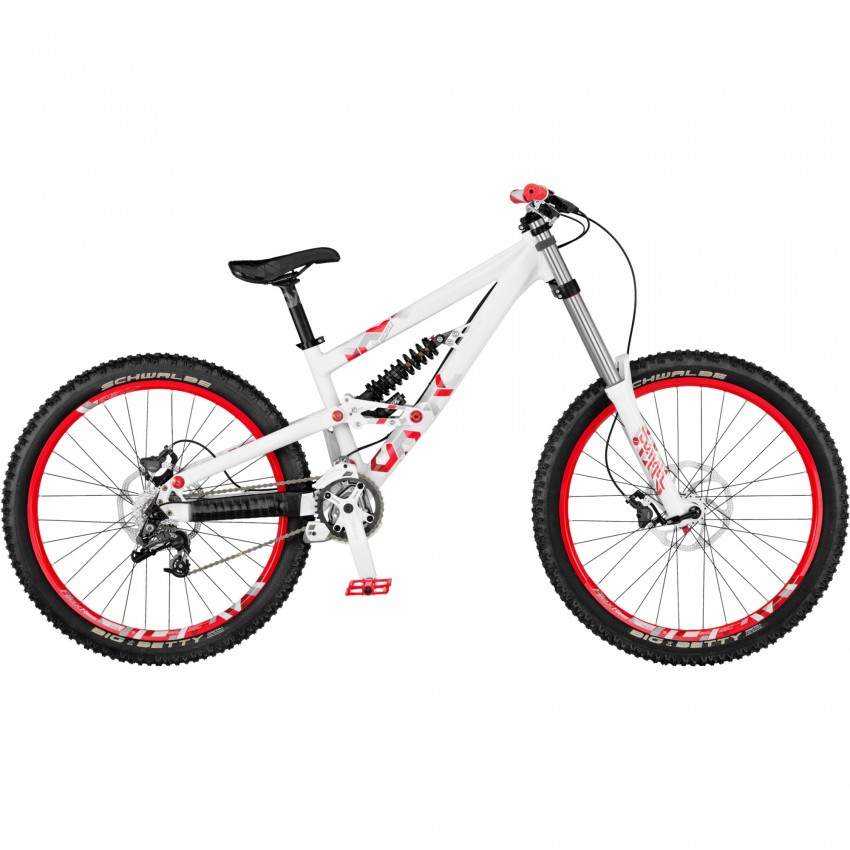

Voltage FR 20

Kod produktu: 221741



Opis produktu

Wielkie hopy, ciasne bandy, triki przy każdym skoku. Voltage FR to maszyna w przystępnej cenie, która cieszy przy każdej okazji, czy to w bikeparku, czy podczas zawodów slopestyle. Ten rower zniesie wszystko.

Wymiary
short / long

Waga
17.90 kg

Rama
Voltage FR Alloy 6061, hydroformed tubing,
Slopestyle & Park geometry, ISCG & ISCG05 tabs,
headtube for 1.5“, IDS interchangeable Dropout
with 12mm thru axle, 160 - 180mm travel

Widelec
RockShox Domain Dualcrown R, 200mm travel,
Coil oil, Reb adjustable, alloy steerer, 20mm Maxle

Amortyzator (tył)
Fox Van R coil spring preload, Speed sensitive
compression & rebound damping, Rebound adjustable, custom tuned

Stery
FSA Orbit E 1.5R, alloy cups, 1.5“ Reducer to 1 1/8“, semi-integrated

Przerzutka (tył)
Sram X7, 9 Speed, short cage

Manetki
Sram X5, Trigger Shifter

Klamki hamulca
Avid Elixir 5S Disc

Hamulce
Avid Elixir 5S Disc, 200/F and 200/R mm Rotor

Korbowód
Truvativ Hussefelt 1.0, 165mm, 36T chainring

Oś korbowodu
Truvativ HowitzerXR, 73mm shell

prowadnica łańcucha
E.thirteen LS-1, ISCG05, Chainguide w/Taco

Kierownica
Scott Pilot FR 1 Pro, D.B, 20mm rise, 750mm

Mostek
Scott MJ-Boxxer02, 1 1/8“, 0° angle, 50mm ext.

Pedały
Wellgo B155U SCT, Flatpedal w/replaceable pins

Sztyca
Scott DJ zero offset, 31.6mm

Siodło
Scott Voltage FR

Piasta (Przód)
Scott Comp, 20mm thru axle

Piasta (Tył)
Scott DHL-135, 12mm thru axle, 135mm wide

Łańcuch
Sram CN-PC-951 w/pwr lock

Kaseta
Sram PG-950, 11-28 T

Szprychy
DT Swiss Industry black 14G 2.0mm

Obręcze
Alex FR 32, 32H, DH disc rim red

Opony
Schwalbe Big Betty DH, Front: 26 x2.4 Vertstar,
Rear: 26 x 2.4 Trailstar, Triple Nano Compound,
Wire Bead, 2-ply DH casing, Snake Bite
Protection, 67EPI

    SHORT LONG
A head tube angle 65.0° 65.0°
B headtube length 118 mm 4.6 inches 118 mm 4.6 inches
C toptube length horizontal 557 mm 21.9 inches 582 mm 22.9 inches
D toptube length actual 533 mm 21.0 inches 555 mm 21.9 inches
E seat tube angle 73.3° 73.3°
F BB center to top of seattube 365 mm 14.4 inches 365 mm 14.4 inches
G BB center to toptube center 307 mm 12.1 inches 307 mm 12.1 inches
H chainstay length ** 425 mm 16.7 inches 425 mm 16.7 inches
I BB offset 3 mm 0.1 inches 3 mm 0.1 inches
J BB height 348 mm 13.7 inches 348 mm 13.7 inches
K standover height 768 mm 30.2 inches 768 mm 30.2 inches
  wheelbase 1134 mm 44.6 inches 1159 mm 45.6 inches
L reach 379 mm 14.9 inches 404 mm 15.9 inches
M stack 600 mm 23.6 inches 600 mm 23.6 inches
  stem length 40 mm 40 mm
